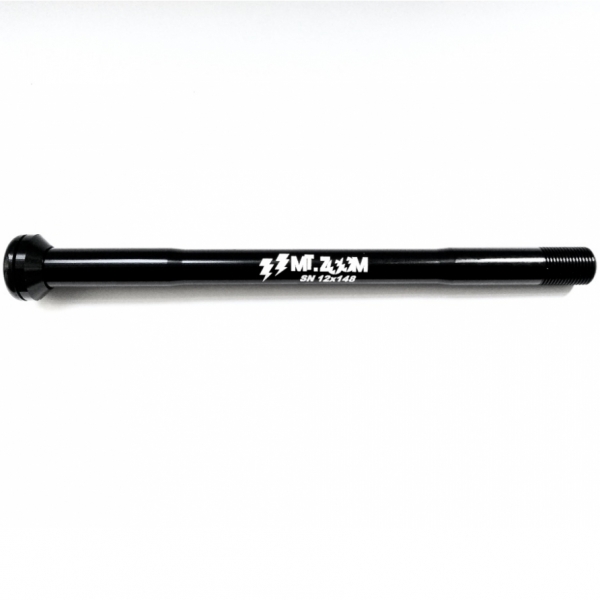

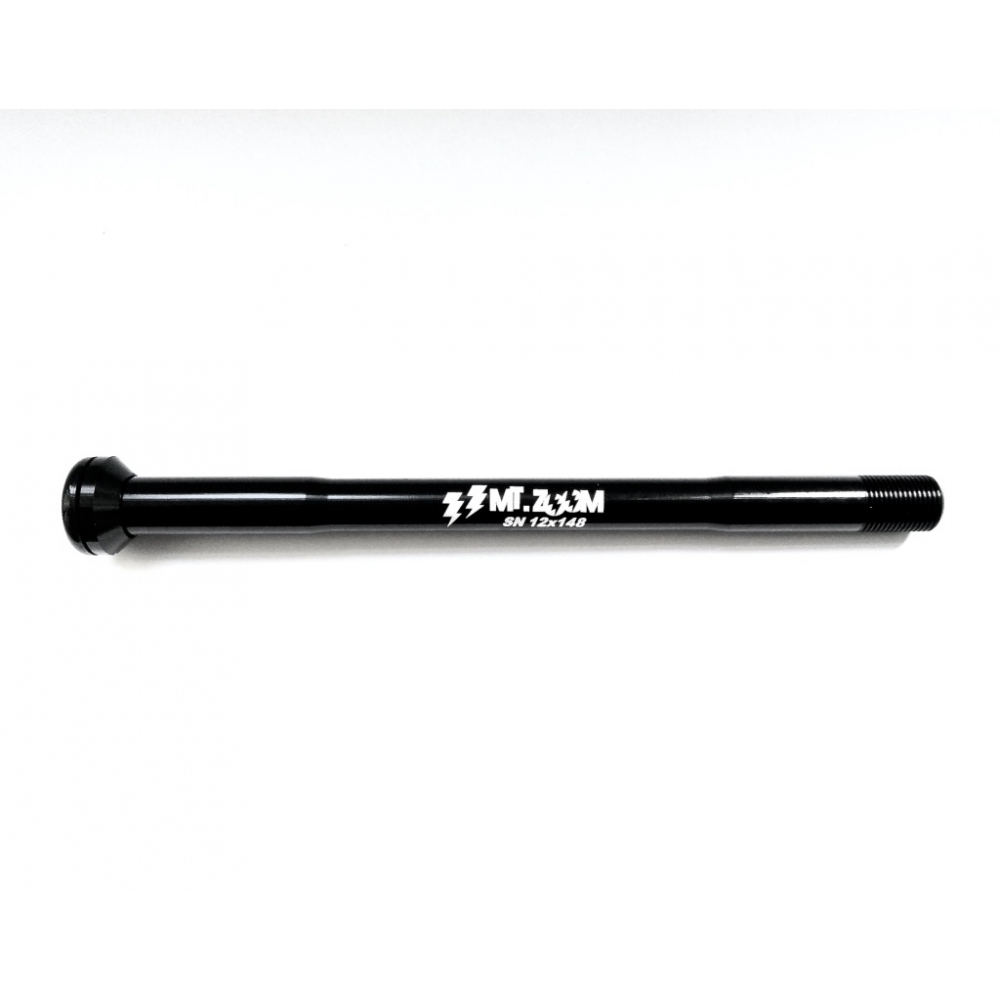

MT ZOOM Ultralight SYNTACE style rear wheel BOOST THRU AXLE
Simple, light, strong and excellent value.
This style is the Syntace standard with the conical clamp face to fit into the countersunk recess in the frame (not the flat faced interface). Present on many Specialized, Canyon, Cannondale, BMC, BH frames.
At only 41g - drop some weight from your wheels.
The 12mm x 148 mm rear axle boost standard.
Anodised black / 7075 Aluminium
2 year warranty
Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM)
Key technical measurements:
Thread pitch 1mm
Length from base of inner conical clamp to end of thru axle: 165mm
Thread area length: 17mm
Inner axle maximum width: 12mm
Note some boost frames are designed to still use the standard length axle. If you are replacing an axle on a boost frame it is worth measuring it's length to see whether you need a boost length axle or a standard length one.
We also sell other great value front & rear thru axles - see separate listings.
MT ZOOM (Mount Zoom) is a new brand which is focused on products that will help you zoom up hills, fast!
Check out the MT ZOOM website for more info & other lightweight products. www.mtzoom.com
